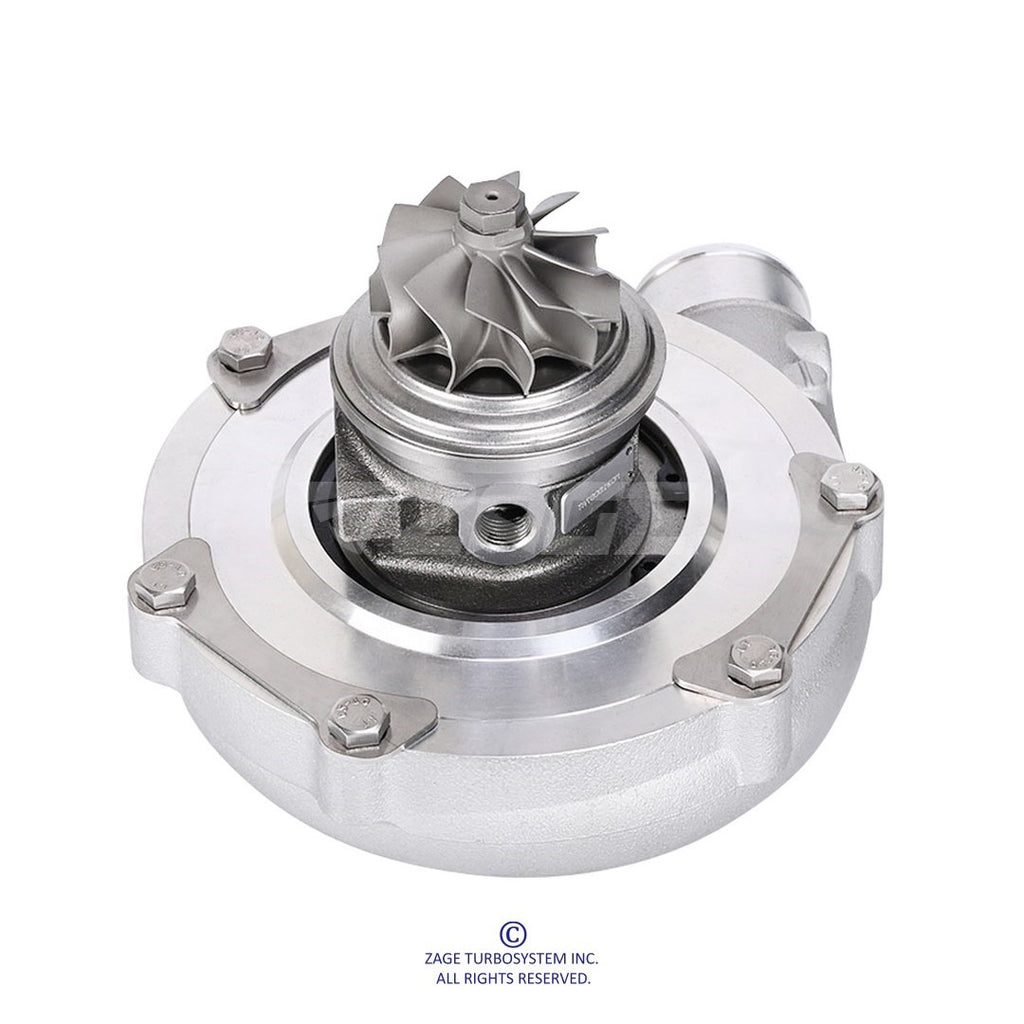

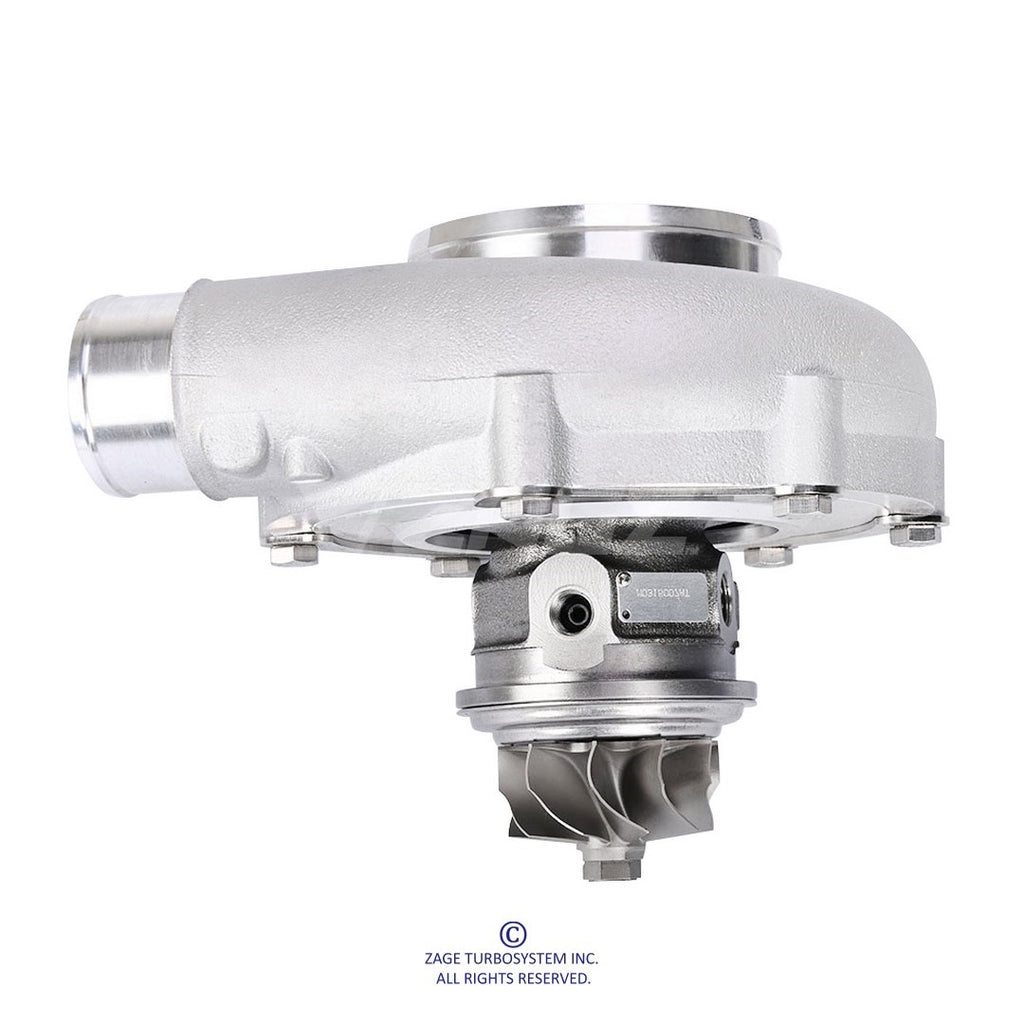

Supercore Part Number : 1ZUN8S-686100-A5



Comp Wheel: 62/76mm

Trim: 65

A/R : 0.72



Turbine Wheel: 68/62mm

Trim: 84



Horsepower: 550-900hp

Displacement: 2.0L-5.5L



The following components are not included as part of the Super-Core: Turbine Housing, Clamp Plate Hardware, Wastegate, and Actuator.

Zage G Series wheels are compatible with only GTX cartridges, this allows GTX turbos to upgrade to G Series at minimal cost!



*** ZAGE can ship worldwide with no minimum order quantity. ***



Below items are turbine housings and actuators that we recommend to go with the Super-Core at additional cost.



Turbine kit PN A/R Inlet Outlet Wastegate Divided
1GTBH-F01ZG62-0200  1.06 T3  5 Bolt  Wastegated
1GTBH-GA3ZG62-0100  0.61 V-Band  V-Band  Free Float
1GTBH-GA4ZG62-0100  0.83 V-Band  V-Band  Free Float
1GTBH-GA5ZG62-0100  1.01 V-Band  V-Band  Free Float
1GTBH-GA6ZG62-0200  0.61 V-Band  V-Band  Free Float
1GTBH-GA7ZG62-0200  0.83 V-Band  V-Band  Free Float
1GTBH-GA8ZG62-0100  1.01 V-Band  V-Band  Free Float
1GTBH-GA9ZG62-0100  0.61 T3  V-Band  Free Float
1GTBH-GA10ZG62-0100  0.83 T3  V-Band  Free Float
1GTBH-GA11ZG62-0100  1.01 T3  V-Band  Free Float
1GTBH-UN506362-0100  0.63 V-Band  V-Band  Free Float
1GTBH-UN508262-0100  0.82 V-Band  V-Band  Free Float
1GTBH-UN510662-0100  1.06 V-Band  V-Band  Free Float
1GTBH-UN606362-0100  0.63 T3  V-Band  Free Float
1GTBH-UN608262-0100  0.82 T3  V-Band  Free Float
1GTBH-UN610662-0100  1.06 T3  V-Band  Free Float
1GTBH-SU5ZG62-0100  10cm2  Subaru  5 Bolt  Wastegated
1GTBH-SU7ZG62-0100  8cm2  Subaru  5 Bolt  Wastegated
