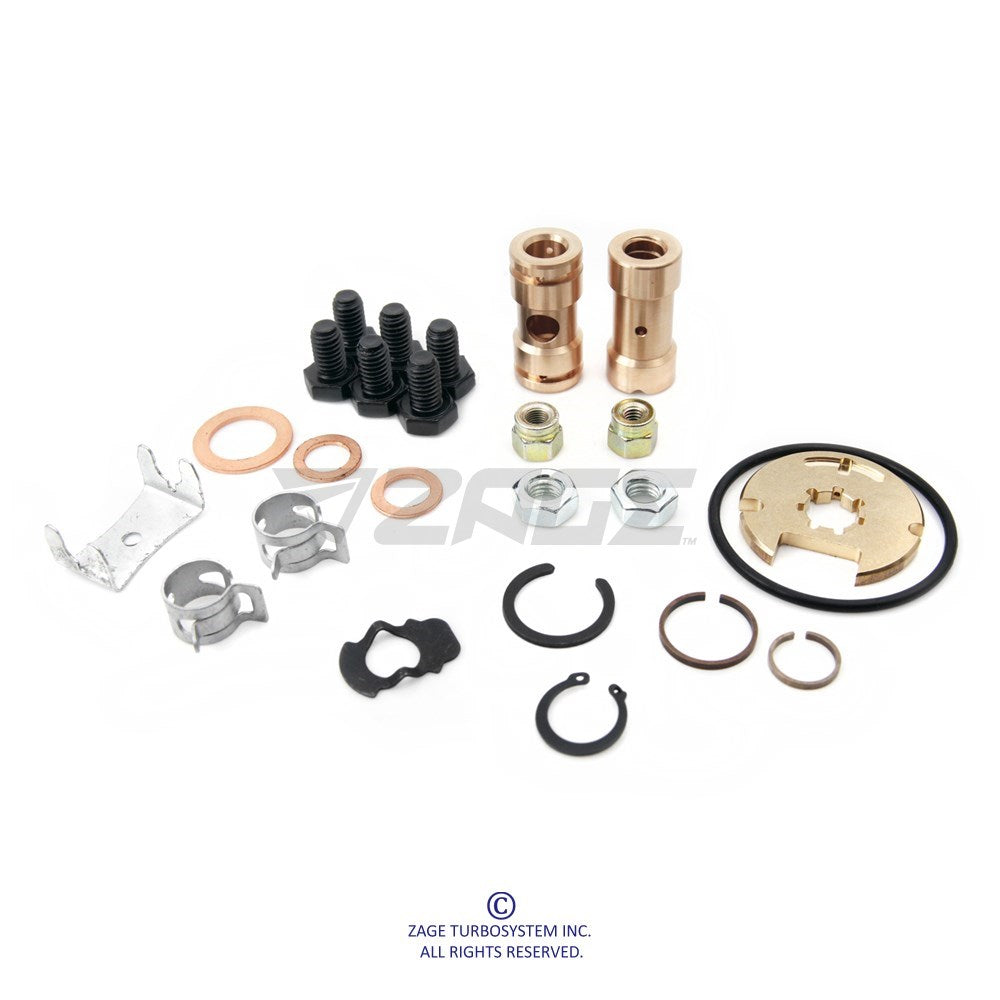

Rebuild Kit for K03/ K04 Turbo
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type | OEM Number |
| 1GRBK-ZKK1-0100 | Single | 5303-711-0000 |
| 1GRBK-ZKK1-0200 | Twin | 5303-711-0001 |
| 1GRBK-ZKK1-0300 | Single +Twin | - |
| 1GRBK-ZKK1-0400 | Single( W/FG. TR.) | - |
| 1GRBK-ZKK1-0500 | Twin(W/FG. TR.) | - |
| 1GRBK-ZKK1-0600 | Single +Twin (W/FG. TR.) |
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0610010A-0100 | Bolt (Turb/Hsg) | 6 |
| 4CSR-I-013-0300 | Snap Ring | 1 |
| 4CSR-I-016-0200 | Circlip | 1 |
| 4NUT-M04070R-0200 | Shaft Nut (M4x0.7P) | 1 |
| 4NUT-M06100N-0100 | Nut | 2 |
| 4NUT-M45050R-0100 | Shaft Nut (M4.5x0.5P) | 1 |
| 4ORN-03620-0100 | O-Ring (Seal Plate/36mm) | 1 |
| 4RKP-AP-KK-0100 | Anti-Rotation Plate | 1 |
| 4RKP-AP-KK-0200 | J-Bearing Lock Plate | 1 |
| 4RKP-JB-KK-0200 | Journal Bearing (Single) | 1 |
| 4RKP-JB-KK-0300 | Journal Bearing(Twin Oil Feed) | 1 |
| 4RKP-PR-140-0101 | Piston Ring (Φ14/T1.37/R0.78) | 1 |
| 4RKP-TB-KK-0102 | Thrust Bearing | 1 |
| 4TCP-P1012-0100 | Band | 2 |
| 4WAS-M08C-0200 | Washer | 2 |
| 4WAS-M12C-0100 | Washer | 1 |
| 4RKP-PR-100-0100 | Piston Ring (Comp)Φ10 T1.37 | 1 |
