Rebuild Kit for IHI RHG6 Turbo


Rebuild Kit for IHI RHG6 Turbo



Part Number : 1GRBK-ZIH15-0100



*** ZAGE can ship worldwide with no minimum order quantity. ***

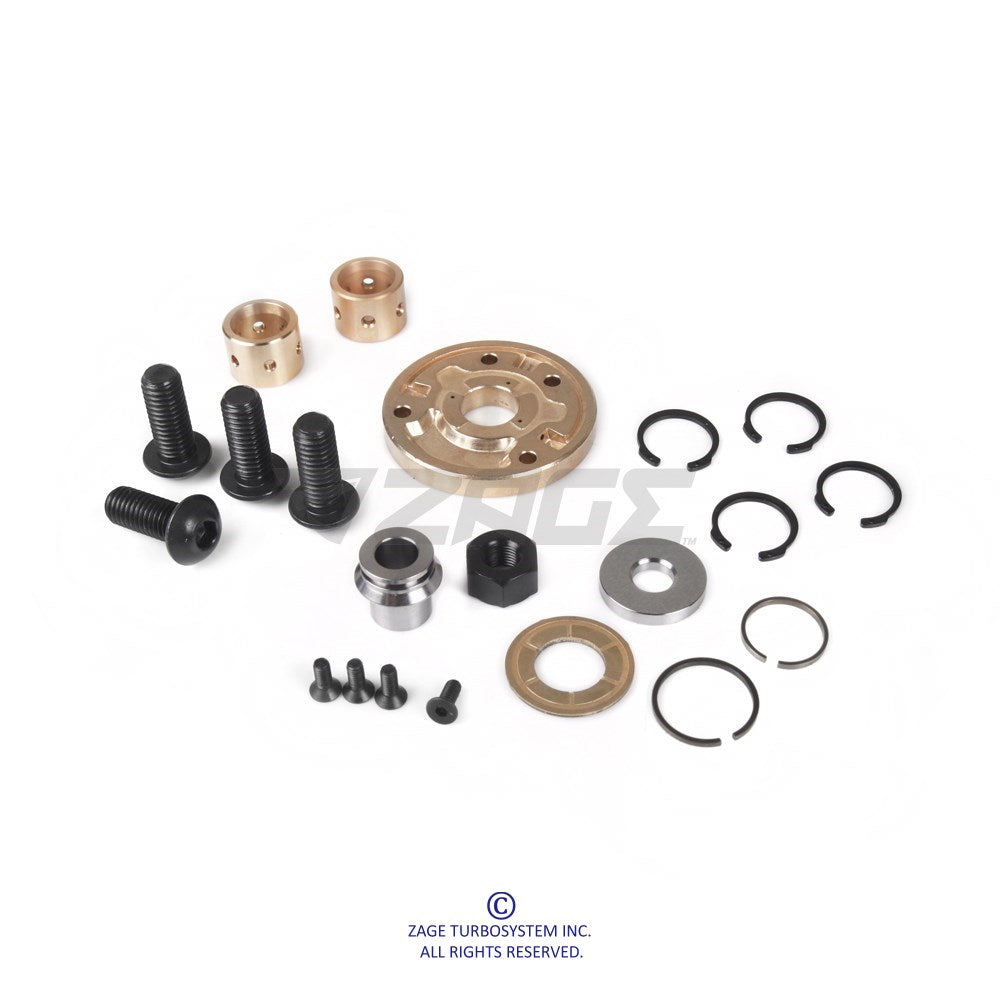

Kit Includes
 P/N  Type  Qty
4BOT-M0305008G-0100 Screw (M3x0.5x8) 4
4BOT-M0812520E-0100 Bolt (M8*1.25p*20) 4
4CSR-I-016-0100 Snap Ring (C/Hsg-Brg/Hsg) 4
4NUT-M07075R-0100 Shaft Nut  1
4RKP-FG-IH-1100 Flinger A 1
4RKP-FG-IH-1200 Flinger B  1
4RKP-JB-IH-1200 Journal Bearing 2
4RKP-PR-140-0100 Piston Ring Φ14/T1.37/R0.78 1
4RKP-PR-170-0300 Piston Ring(Turb)Φ17.04 1.18 1
4RKP-TB-IH-1100 Thrust Bearing 1
4RKP-TW-IH-0500 Thrust Washer 1
