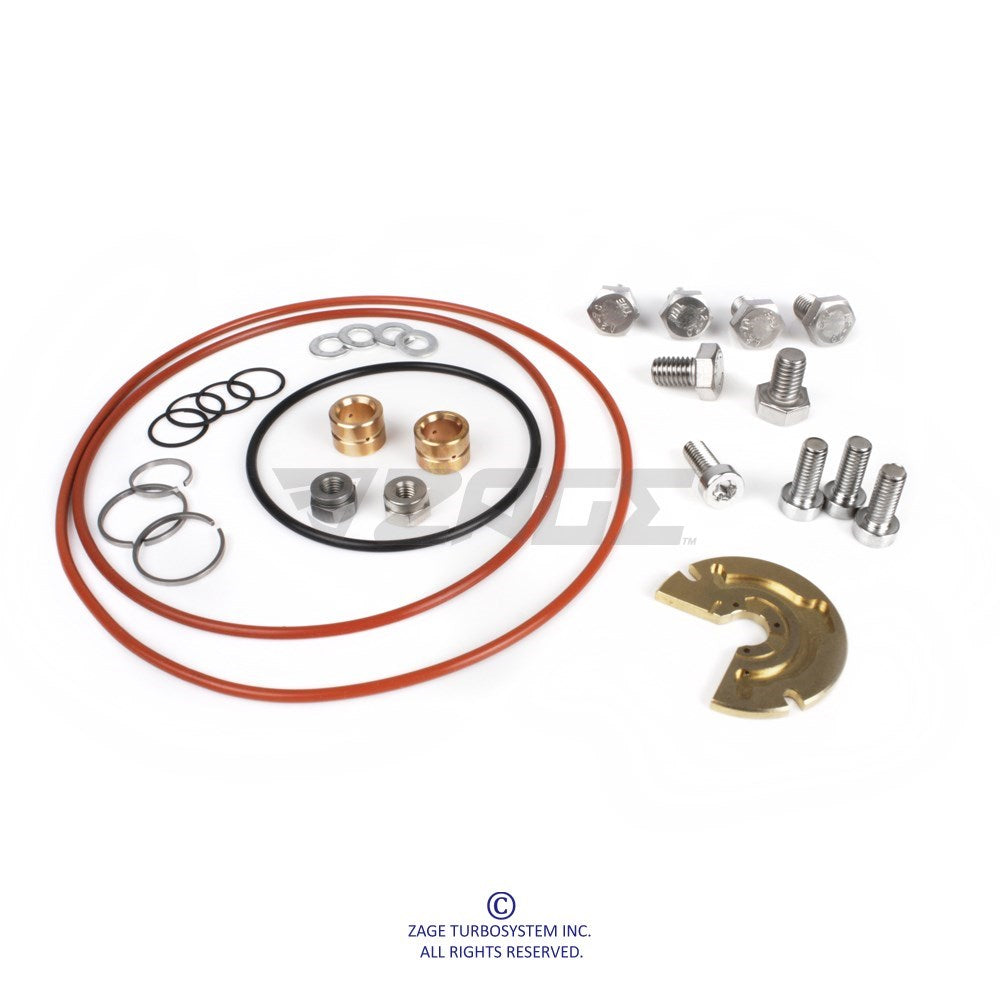

Rebuild Kit for K24 - Small bearing Turbo
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type |
| 1GRBK-ZKK2-0300 | Small bearing |
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0610015J-0100 | Bolt | 4 |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 6 |
| 4CSR-I-013-0100 | Spiral Snap Ring(Brg Retainer) | 4 |
| 4NUT-M05080N-0200 | Shaft Nut RHT M5xP0.8 | 1 |
| 4NUT-M05080R-0100 | Shaft Nut LHTM5xP0.8 | 1 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-11426-0100 | O-Ring (114mm) | 1 |
| 4ORN-13326-0100 | O-Ring (Comp Cover/133*2.65mm) | 1 |
| 4RKP-JB-KK-0400 | Journal Bearing | 2 |
| 4RKP-PR-140-0100 | Piston Ring Φ14/T1.37/R0.78 | 1 |
| 4RKP-PR-193-0301 | Piston Ring Φ19.304 1.39 W6 | 2 |
| 4RKP-TB-KK-0600 | Thrust Bearing | 1 |
| 4WAS-M06F-0600 | Washer | 4 |
