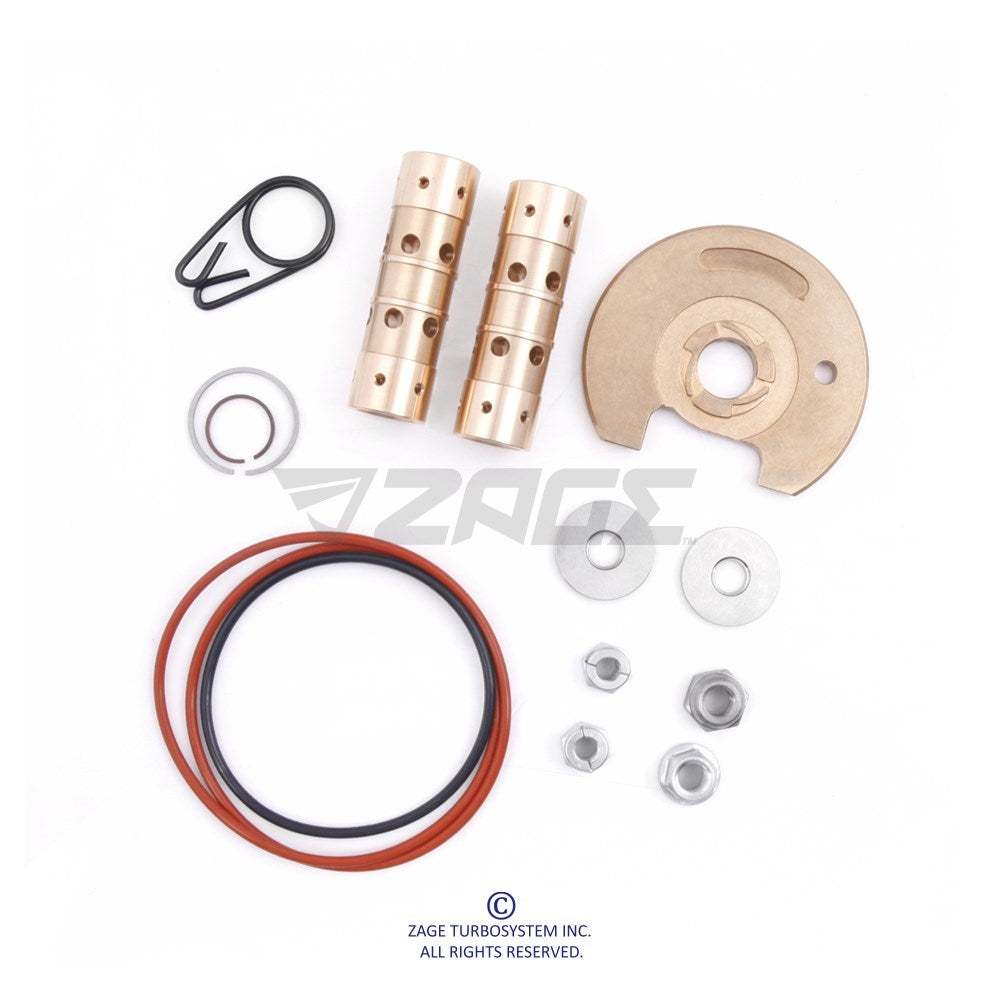

Rebuild Kit for Schwitzer S3/ S3A Turbo
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type |
| 1GRBK-ZSW6-0100 | Minor |
| 1GRBK-ZSW6-0200 | Major |
| Kit Includes | ||
| P/N | Type | Qty |
| 4NUT-I51624R-0100 | Shaft Nut | 1 |
| 4NUT-I51624R-0200 | Shaft Nut | 1 |
| 4NUT-M06100R-0400 | V-BAND LOCK NUT | 2 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-15226-0100 | O-Ring (Comp Cover/152mm) | 1 |
| 4RKP-JB-SW-0500 | Journal Bearing | 2 |
| 4RKP-PR-158-0101 | Piston Ring (Turb)Φ15.88 | 1 |
| 4RKP-PR-254-0101 | Piston Ring(Turb) | 1 |
| 4RKP-TB-SW-0500 | Thrust Bearing | 1 |
| 4CSR-O-018-0100 | Snap Ring(S3A JB) | 1 |
| 4RKP-TW-SW-0200 | Thrust Washer | 2 |
