EJ20/EJ25 (IMPREZA/WRX/STI/GC8-GDB)
2.25 inch cover
Application :
2002-2007 Subaru WRX
2004-2018 Subaru Sti
Flange : Std SUBARU Single Scroll
Actuator : 0.2~2 BAR
Replacement for : Stock TD04L Turbo P/N 49377-04100, 49377-04200, 49377-04300, etc.
*Stock MHI TD04L Turbo MAX 230HP

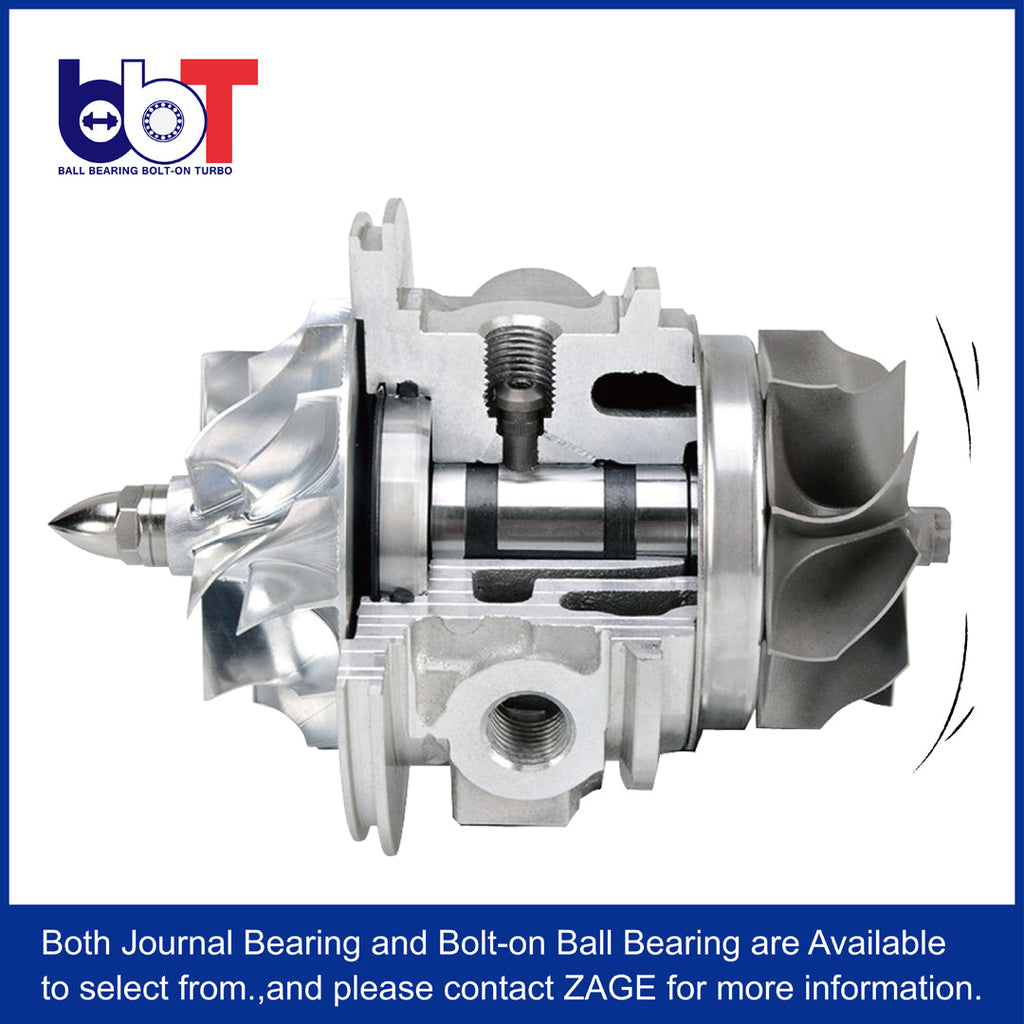

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from, and please contact ZAGE for more information.
| Max HP | Turbine Wheel | AR | Compressor Wheel | CFM | Part Number |
| 350+ | TD05H ( 49.2/55.8mm - 7cm² ) | 49 | 18G ( 50.3/68mm) | 600 | 1ZSU1I-565007-01 |
| 360+ | TD05H ( 49.2/55.8mm - 8cm² ) | 57 | 18G ( 50.3/68mm) | 600 | 1ZSU1I-565008-01 |
| 380+ | TD05H ( 49.2/55.8mm - 7cm² ) | 49 | 20G ( 52.5/68mm) | 640 | 1ZSU1I-565207-01 |
| 390+ | TD05H ( 49.2/55.8mm - 8cm² ) | 57 | 20G ( 52.5/68mm) | 640 | 1ZSU1I-565208-01 |
| 420+ | TD06H(11B) ( 58.8/67.1mm - 8cm² ) | 57 | 20G ( 52.5/68mm) | 640 | 1ZSU1I-675208-01 |
| 400+ | TD06SL2 ( 54/61mm - 7cm² ) | 49 | 20G ( 52.5/68mm) | 640 | 1ZSU1I-615207-01 |
| 410+ | TD06SL2 ( 54/61mm - 8cm² ) | 57 | 20G ( 52.5/68mm) | 640 | 1ZSU1I-615208-01 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
