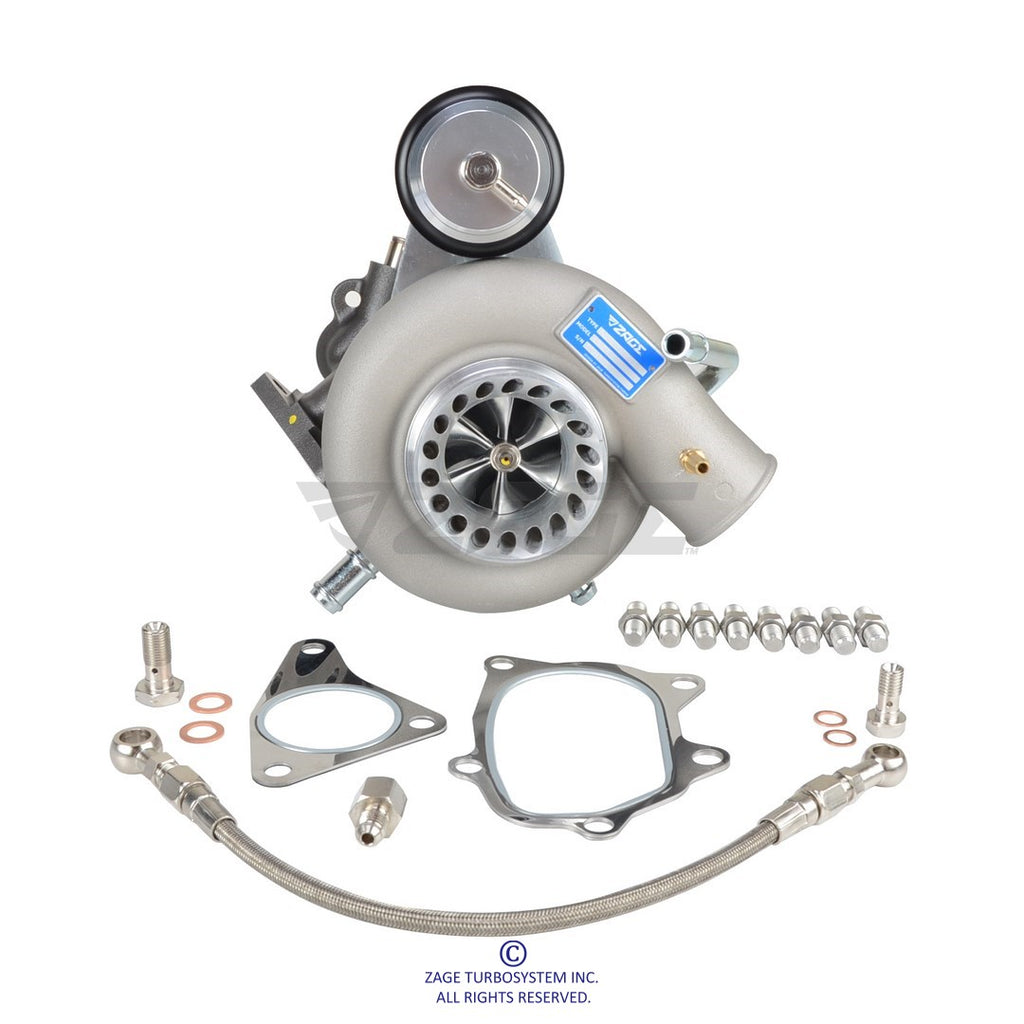

EJ20/EJ25 (IMPREZA/WRX/STI/GC8-GDB)
3.15 inch cover
Flange : Std SUBARU Single Scroll

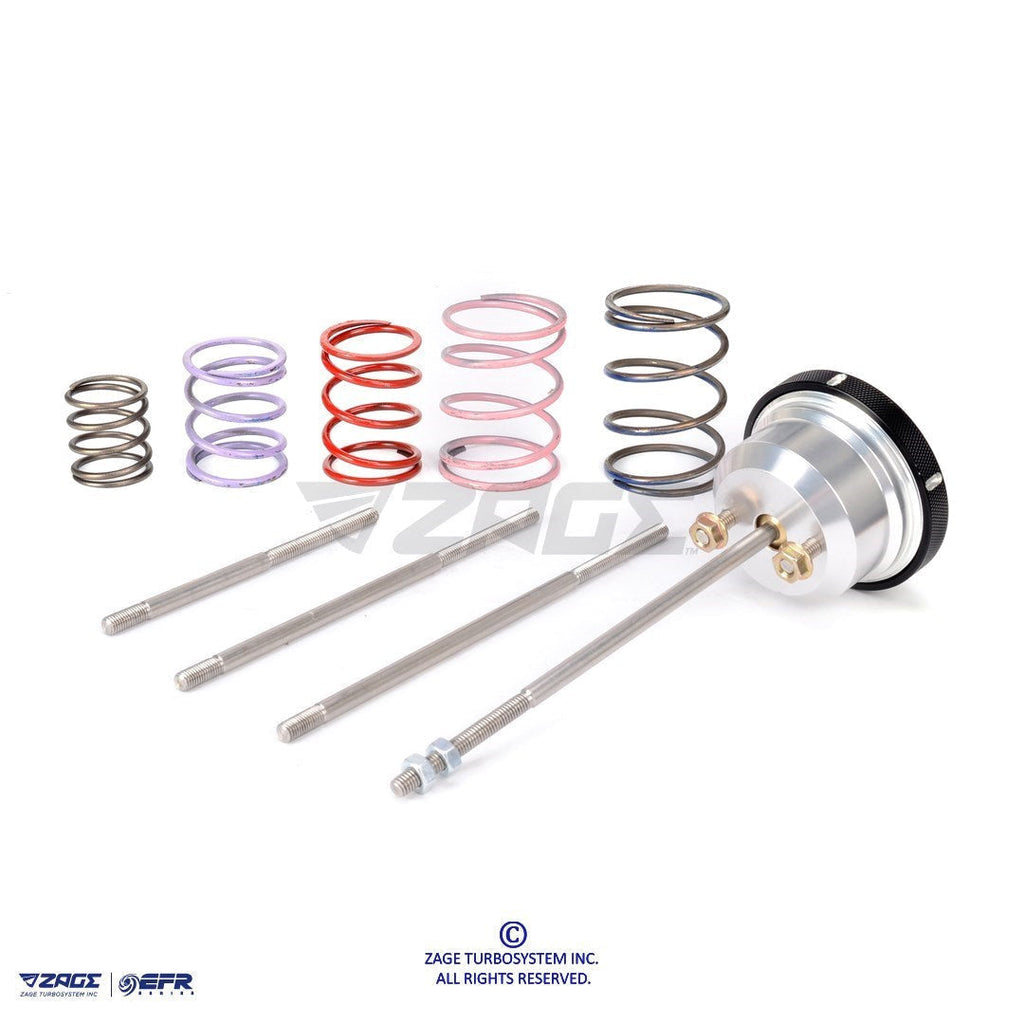

Actuator : 0.2~2 BAR
*REQUIRE EXTRA 3.15 INCH PIPE
APPLICATIONS :
2002 - 2007 Subaru WRX
2004 – 2018 Subaru Sti

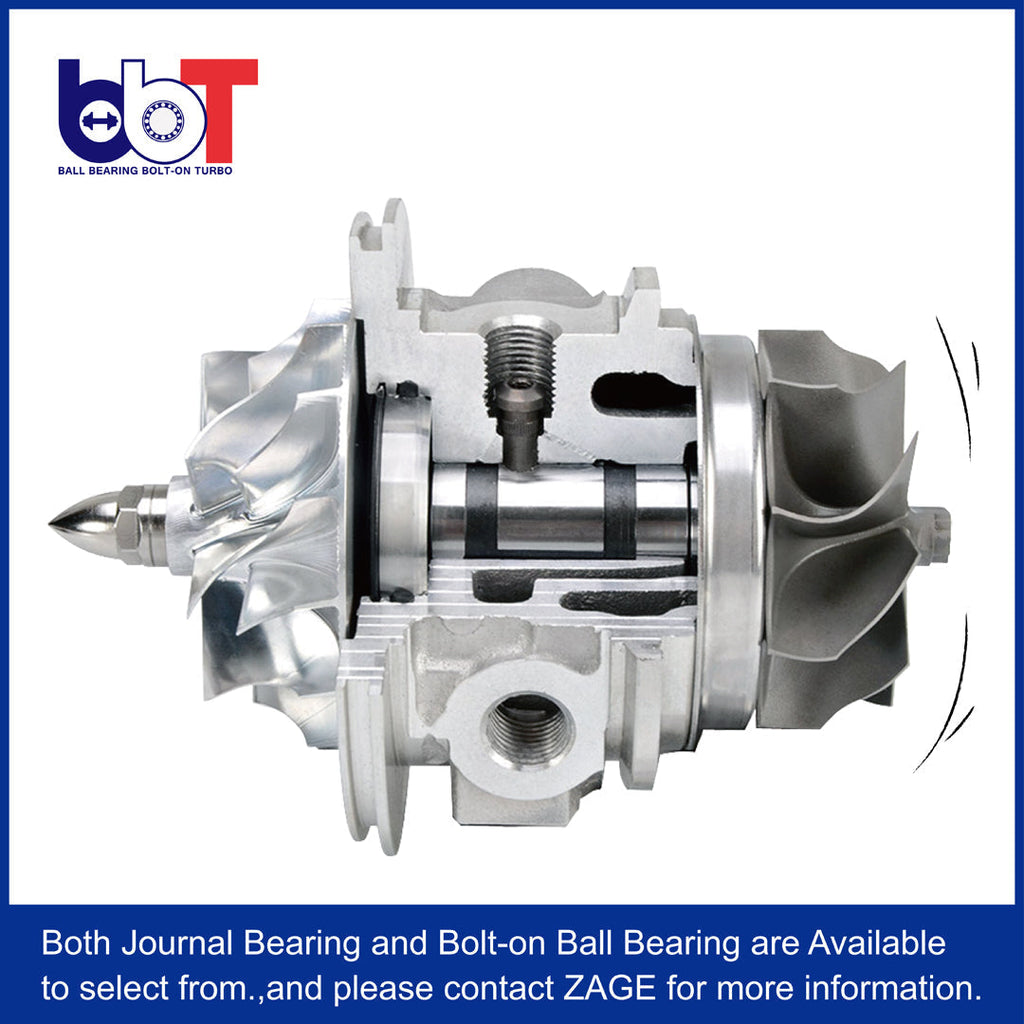

● Both Journal Bearing and Bolt-on Ball Bearing are Available to select from.,and please contact ZAGE for more information.
| Max HP | Turbine Wheel | AR | Compressor Wheel | CFM | Part Number |
| 410+ | TD06SL2 ( 54/61mm - 7cm² ) | 49 | 20G ( 52.5/68mm) | 640 | 1ZSU3I-615207-01 |
| 420+ | TD06SL2 ( 54/61mm - 8cm² ) | 57 | 20G ( 52.5/68mm) | 640 | 1ZSU3I-615208-01 |
| 450+ | TD06SL2 ( 54/61mm - 7cm² ) | 49 | 601 ( 59/76mm) | 750 | 1ZSU3I-615907-01 |
| 460+ | TD06SL2 ( 54/61mm - 8cm² ) | 57 | 601 ( 59/76mm) | 750 | 1ZSU3I-615908-01 |
| 480+ | TD06H(11B) ( 58.8/67.1mm - 8cm² ) | 57 | 601 ( 59/76mm) | 750 | 1ZSU3I-675908-01 |
| 480+ | TD06H(12B) ( 58.8/67.1mm - 8cm² ) | 57 | 601 ( 59/76mm) | 750 | 1ZSU3I-675908-02 |
● ZAGE can ship worldwide with no minimum order quantity.
● For bulk-buy B2B trade, please contact sales1@zageturbo.com for more information.
