Rebuild Kit for Toyota CT12B Turbo
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Part Number | Type |
| 1GRBK-ZTO1-0100 | Major |
| 1GRBK-ZTO1-0200 | Minor |

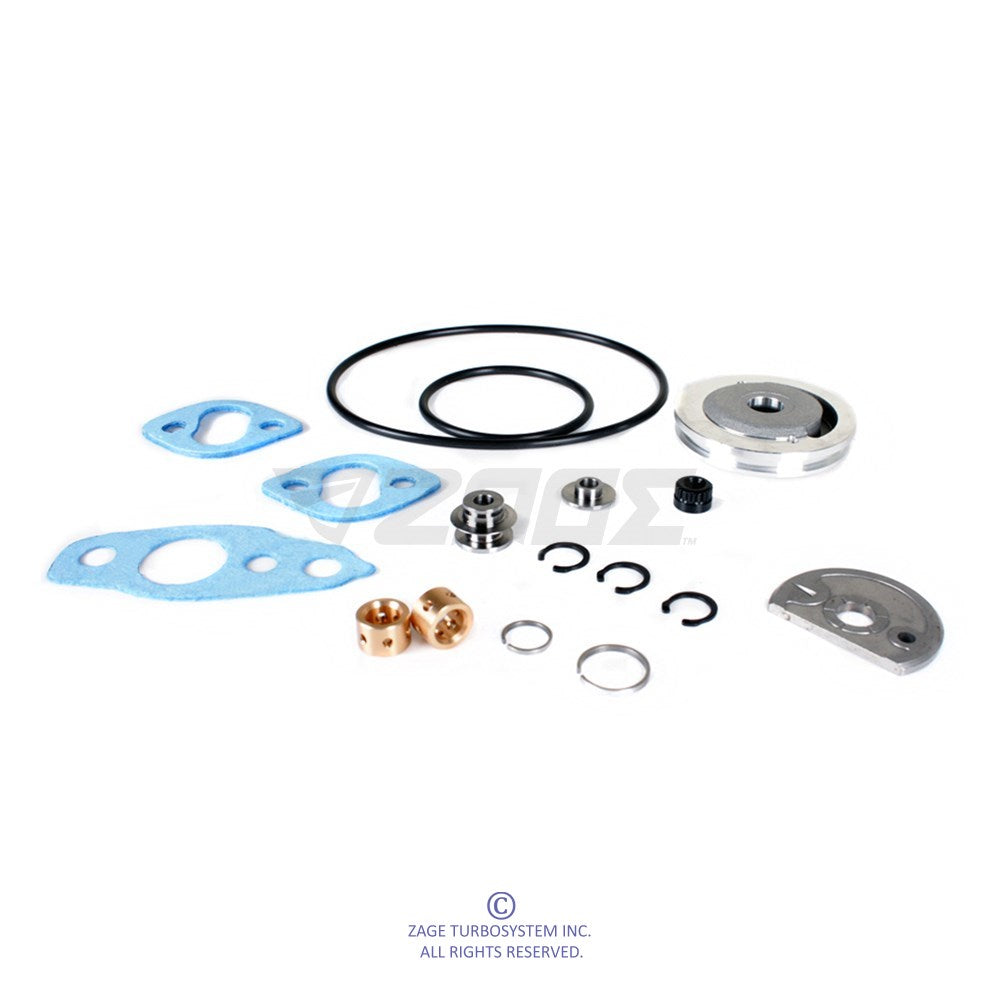

| Kit Includes | ||
| P/N | Type | Qty |
| 4CSR-I-012-0300 | Snap Ring(Screw T-Brg) | 3 |
| 4NUT-M05050R-0200 | Shaft Nut(M5xp0.5 LH) | 1 |
| 4OIG-TO1-0100 | Oil Feed Gasket | 1 |
| 4ORN-04931-0100 | O-Ring (Insert/49mm)49.4x3.1VT | 1 |
| 4ORN-09931-0100 | O-Ring (99mm) | 1 |
| 4RKP-FG-TO-0300 | Flinger | 1 |
| 4RKP-IS-TO-0100 | Insert | 1 |
| 4RKP-JB-TO-0300 | Journal Bearing | 2 |
| 4RKP-PR-110-0200 | Piston Ring (Insert side)Φ11 | 1 |
| 4RKP-PR-154-0101 | Piston Ring(T)Φ15.4/1.56/R0.9 | 1 |
| 4RKP-TB-TO-0100 | Thrust Bearing | 1 |
| 4RKP-TR-TO-0300 | Thrust Ring | 1 |
| 4WTG-TO1-0100 | Water Gasket | 2 |
