Rebuild Kit for KP/BV 31-39 Turbo
| Part Number | Type |
| 1GRBK-ZKK9-0100 | 180 Degree |
| 1GRBK-ZKK9-0200 | 360 Degree |
| 1GRBK-ZKK9-0300 | 360 Twin Ring |

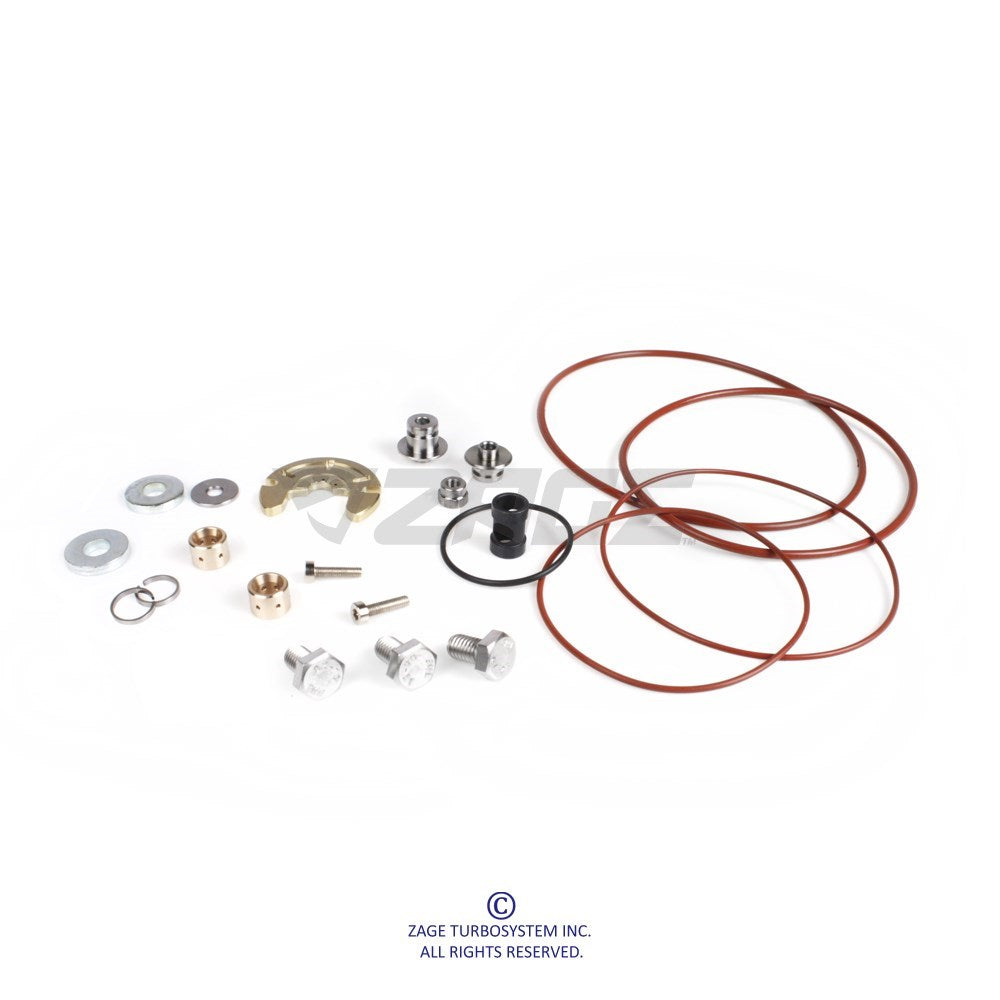

| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0305012J-0100 | Bolt | 2 |
| 4BOT-M0610010C-0200 | Bolt | 3 |
| 4NUT-M04050R-0300 | Shaft Nut M4x0.5 | 1 |
| 4ORN-03215-0100 | O-Ring (Insert/ID 32x1.5VT) | 1 |
| 4ORN-06615-0100 | O-Ring | 1 |
| 4ORN-07715-0100 | O-Ring (B-Hsg/C-Hsg) | 1 |
| 4ORN-09326-0100 | O-Ring (B/Hsg-C/Hsg) Si70 | 1 |
| 4ORN-10324-0100 | O-Ring (103mm) | 1 |
| 4RKP-CP-GA-0700 | Clamp Washer (Turb/Hsg) | 2 |
| 4RKP-FG-KK-0500 | Flinger | 1 |
| 4RKP-FG-KK-0600 | Flinger | 1 |
| 4RKP-JB-KK-0800 | Journal Bearing | 2 |
| 4RKP-PR-100-0100 | Piston Ring (Comp)Φ10 T1.37 | 2 |
| 4RKP-SS-KK-0100 | Spacer Sleeve | 1 |
| 4RKP-TB-KK-0700 | Thrust Bearing | 1 |
| 4RKP-TW-KK-0300 | Thrust Washer | 1 |
