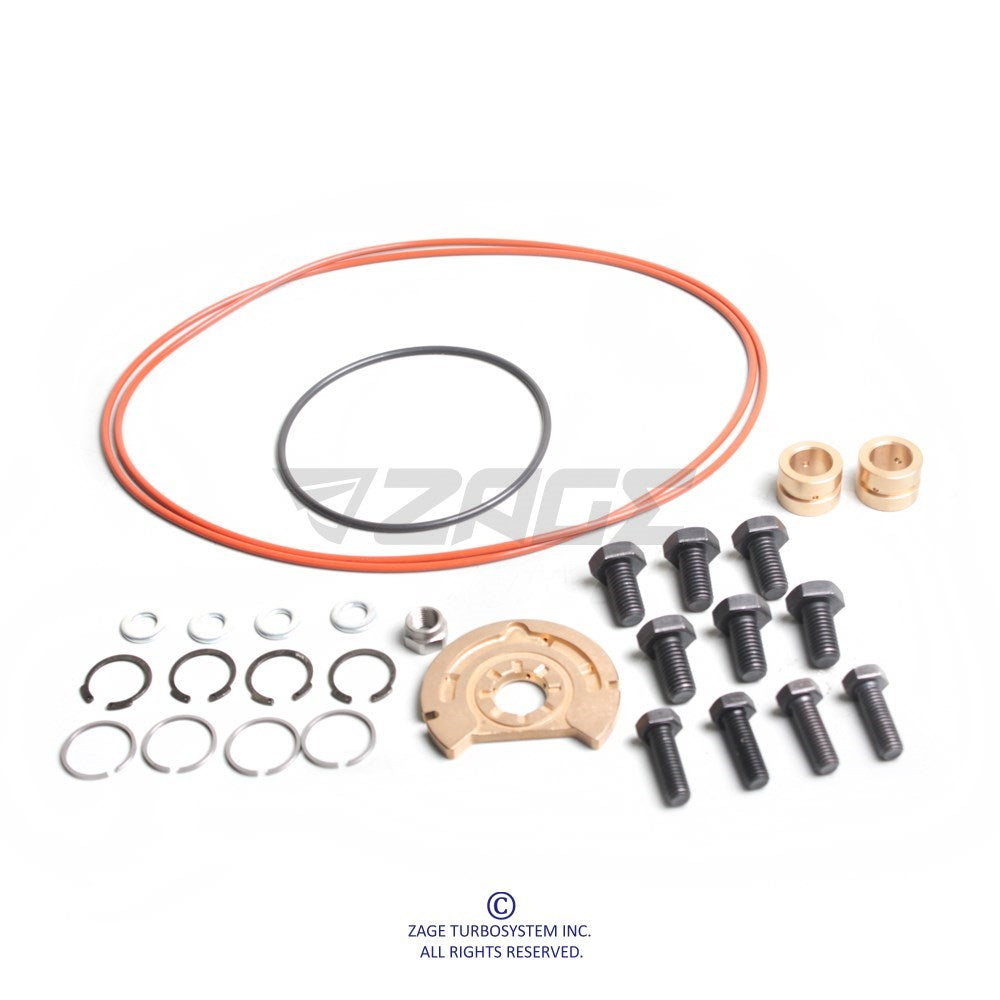

Rebuild Kit for K36/ K37 Turbo
Part Number : 1GRBK-ZKK10-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0812525A-0100 | Bolt(M8*1.25p*25mm) | 4 |
| 4BOT-M1015020A-0100 | Bolt (Turb) | 6 |
| 4CSR-I-022-0100 | Snap Ring (J-Brg) | 4 |
| 4NUT-M10100N-0100 | Shaft Nut (M10xP1.0) | 1 |
| 4ORN-09431-0100 | O-Ring (Seal plate/94.4mm) | 1 |
| 4ORN-20235-0100 | O-Ring (Comp Cover/202mm) | 1 |
| 4ORN-21030-0100 | O-Ring (Comp Cover/210mm) | 1 |
| 4RKP-JB-KK-0700 | Journal Bearing | 2 |
| 4RKP-PR-224-0100 | Piston Ring (Turb)Φ22.45 | 4 |
| 4RKP-TB-KK-0400 | Thrust Bearing | 1 |
| 4WAS-M08F-0200 | Washer M8(D8xD16x1.5T) | 4 |
