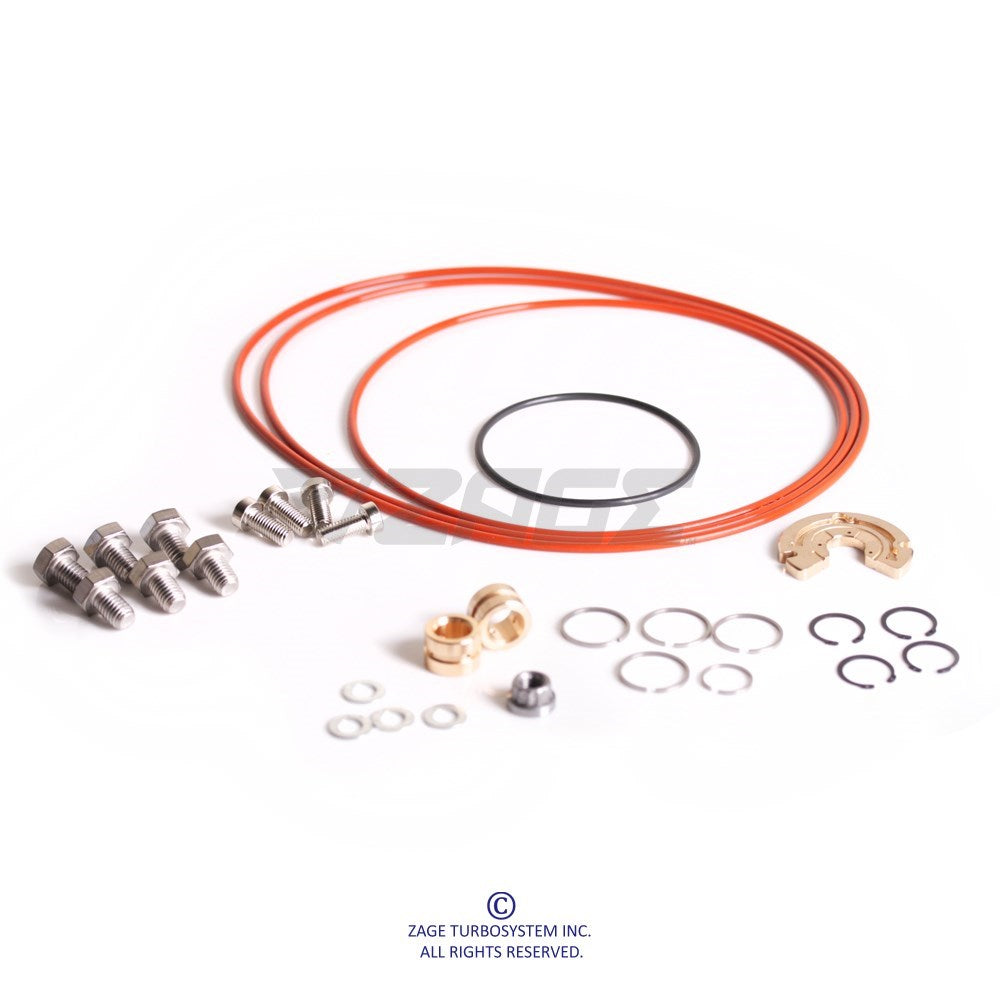

Rebuild Kit for K27 Turbo
Part Number : 1GRBK-ZKK8-0100
*** ZAGE can ship worldwide with no minimum order quantity. ***
| Kit Includes | ||
| P/N | Type | Qty |
| 4BOT-M0610015J-0100 | Bolt | 4 |
| 4BOT-M0812512A-0100 | Bolt(M8*1.25p*12mm) | 6 |
| 4CSR-I-160-0100 | Snap Ring(J-Brg)(17x0.6) | 4 |
| 4NUT-M07100R-0200 | Shaft Nut (M7xp1) | 1 |
| 4ORN-06426-0100 | O-Ring (Insert/64.7mm)4LE | 1 |
| 4ORN-15031-0100 | O-Ring (B/Hsg-C/Hsg) | 1 |
| 4ORN-17430-0100 | O-Ring (Comp Cover/174.3mm) | 1 |
| 4ORN-18431-0100 | O-Ring (Comp Cover/184.3mm) | 1 |
| 4RKP-JB-KK-0500 | Journal Bearing | 2 |
| 4RKP-PR-140-0100 | Piston Ring Φ14/T1.37/R0.78 | 1 |
| 4RKP-PR-193-0201 | Piston Ring Φ19.3 (K33 S)W6 | 2 |
| 4RKP-TB-KK-0500 | Thrust Bearing 270˚ | 1 |
| 4WAS-M06F-0600 | Washer | 4 |
| 4RKP-PR-193-0301 | Piston Ring Φ19.304 1.39 W6 | 2 |
